Calculates recipes with liquid fertilizers, converts weight grades to litres with the density of each product and distributes the recipe in tanks. Compares two recipes, finds product combinations for a target and breaks an analysis down into the raw materials that explain it.
Automatic mode, recipes per tank, tank layouts and injection.
Features
- Automatic mode: Dose of each liquid for the target, with irrigation water deducted, excluded salts and caps per ion.
- Find combinations: Combination of products from a selection that reaches the target.
- Delivery note check: Breakdown of an analysis into the raw materials that explain it and grade calculation.
- Density and litres: Conversion of weight grade to litres with the density of each product.
- Tanks and injection: Head unit layouts, distribution between tanks, total injection, acid in its own tank or in the fertilizer tanks, bases and biocide.
- Chemical check: Charge balance and precipitation at the water temperature.
- Reports: EC per tank at the diluted outlet, ionic ratios and salinity, costs, comparison of two recipes and preparation recipe.
Inputs
Composition and density of each liquid fertilizer. Target solution or saved programme, water analysis and recirculated drainage. Tanks, distribution, injection and water temperature.
Results

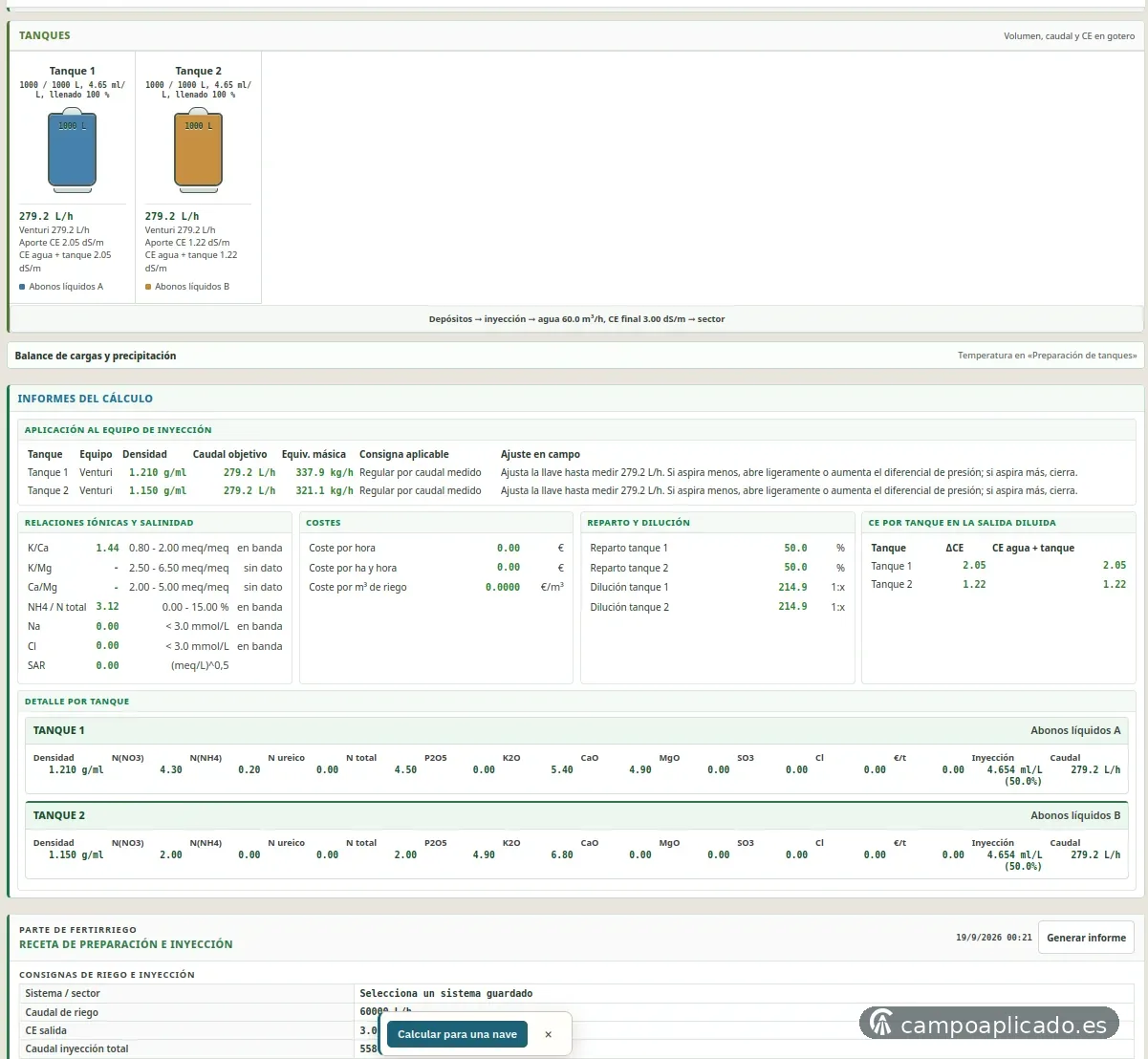

Litres per product and tank, and solution composition. Injection flow, EC per tank and final irrigation EC. Recipe comparison, charge balance, precipitation, costs and preparation recipe.
Calculation conditions
The density of each product is the one on its datasheet. The acid dose and the precipitation check use the water temperature entered. Layouts save the product and injection equipment of each tank; doses are calculated in each recipe.
